8x8 DigitalMedia™ Switcher

Kategorien: Signalmanagement


A fully modular and expandable 8x8 DigitalMedia matrix switcher offering ultra-fast digital video and audio switching and lossless HD multiroom signal distribution for all types of AV sources. Based on the 3-Series® platform. Provides complete management of SD, HD, UHD, 2K, 4K60 4:4:4 HDR, and computer signals with advanced HDCP support, EDID resolution management, CEC signal management, USB signal routing, integrated Ethernet switch, simultaneous 7.1 and stereo audio, H.264 streaming, and a full range of selectable input and output types.

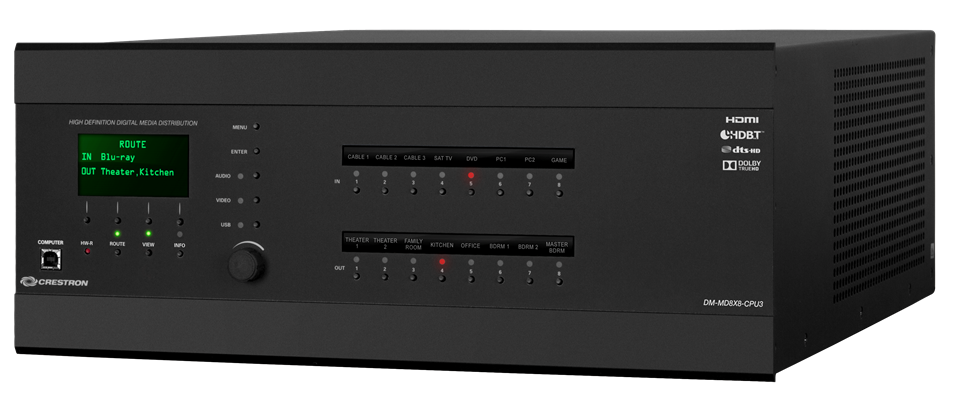

The DM‑MD8X8‑CPU3 delivers an advanced 4K60 4:4:4 AV signal routing solution to provide the foundation for a complete DigitalMedia™ system. The DM‑MD8X8‑CPU3 affords ultra fast switching and lossless distribution of HDMI® and other signals to support digital media players, HDTV receivers, computers, cameras, and display devices.

The DM‑MD8X8‑CPU3 is configurable to handle up to eight AV sources. The outputs are configurable to provide up to eight DM, HDBaseT®, and/or HDMI outputs, or up to four H.264 streaming outputs, in a single chassis.1 Based on the 3‑Series® platform, the DM‑MD8X8‑CPU3  provides enterprise‑grade security.

Integrated Ethernet networking and USB distribution provide a complete connectivity solution combined with built‑in Crestron® control2 for managing the displays and other room devices without any additional wiring. User‑friendly operation, setup, and troubleshooting tools are provided through the DM‑MD8X8‑CPU3 front panel, or via Crestron Toolbox™ software, to allow for easy setup. A web browser interface is also provided.3
